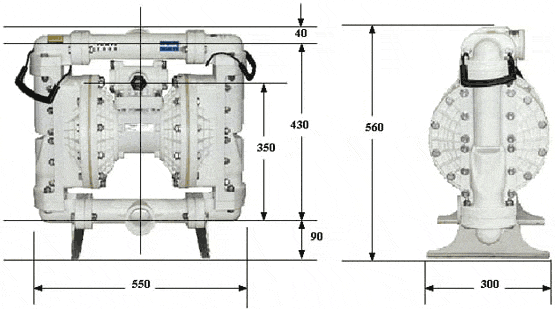

50 mm double diapragm pump

SPECIFICATIONS

MATERIALS OF CONSTRUCTION

FRASplas® NYLON :

Pumps Body Parts
POLYPROPYLENE :
Pump Body Parts
HYTREL® :
Diaphragm & Valve
SANTOPRENE® :
Diaphragm & Valve (SPECIAL)
BUNA N® :
O’ring seals
VITON® :
O’ring seals (SPECIAL)
STAINLESS STEEL :
Shaft/Bolts/Washers etc...

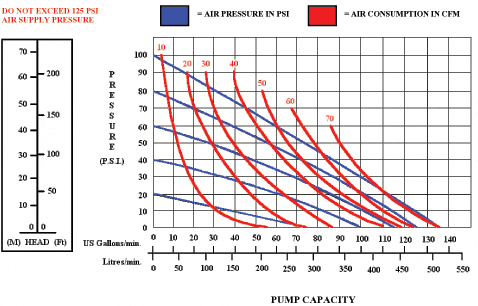

FLOW RATE :

0-130 GPM (0-500LPM)

AIR CONSUMPTION :

77 CFM. Maximum

OPERATING PRESSURE :

100 PSI Air Supply Pressure (Recommended)

PORT SIZE :

2 inch (Female BSP.)

AIR INLET CONNECTION :

1 inch (Female BSP.)

AIR EXHAUST CONNECTION :

1 inch (Female BSP.)

VERTICAL DELIVERY :

50 Meters (Maximum Recommended)

MAXIMUM SUCTION LIFT :

8 Meters (Wet or Dry)

MAXIMUM PARTICLE SIZE :

38 mm spherical

NOISE LEVEL :

84dBA (1 meter in front of exhaust )

SHIPPING MASS :

22 kg - Poly. 28 kg - Fras.

PUMP MASS :

19 kg - Poly. 25 kg - Fras.
